SPECIFICATION （Measured at 230Vac, 25℃. Unless otherwise noted）
| Item | Specifications |
|---|---|
| Output Voltage Selectable | 4.2V; 4.5V; 5V |
| Overload protection | Built-in |
| Short circuit protection | Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage protection | Built-in |
| Withstand voltage | IP-OP:3000Vac; IP-PE:1500Vac;OP-PE:500vdc |
| Working temperature | -40~70℃ |
| Start-up Time | <3Sec |
| Safety standards | GB4943/EN60950 |
| EMCstandards | IEC61000-4 |
| Connection | 9.5mm screw terminial |
| Dimension(L*W*H) | 168±1mm60±1mm30±1mm |

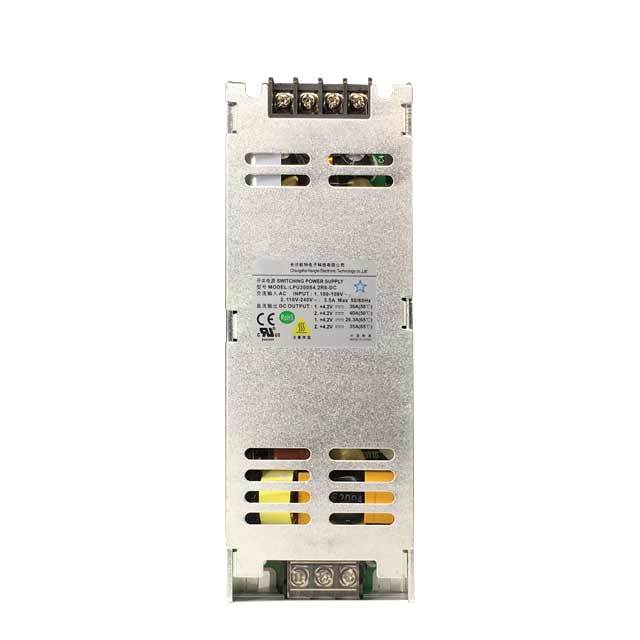

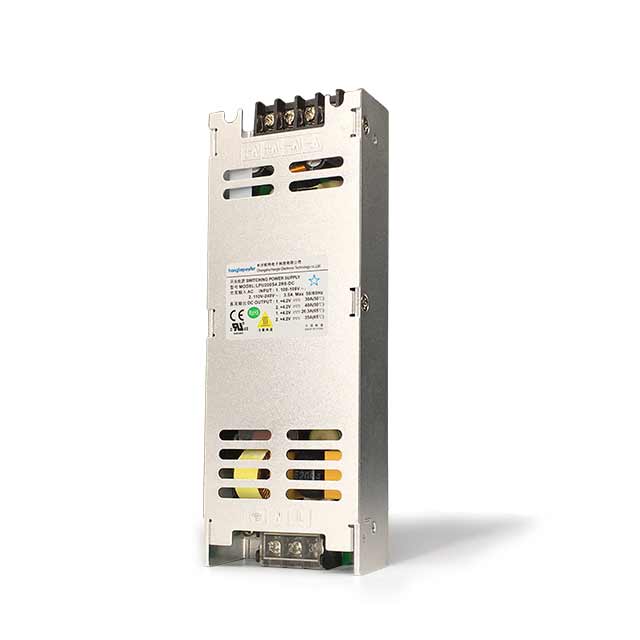

Model List
| Model | Input | Output | Current | Effi | tol | R&N | Temp | PFC | Cert |
|---|---|---|---|---|---|---|---|---|---|
| LPU200S4.2R6-DC | AC90-305V | 4.2V | 40A | 90% | ±3% | <150mV | -40-70℃ | ✔ | CE UL CB 3C |
| LPU200S4.5R6-DC | AC90-305V | 4.5V | 40A | 90% | ±3% | <150mV | -40-70℃ | ✔ | CE UL CB 3C |
| LPU200S5R6-DC | AC90-305V | 5V | 40A | 90% | ±3% | <150mV | -40-70℃ | ✔ | CE UL CB 3C |
